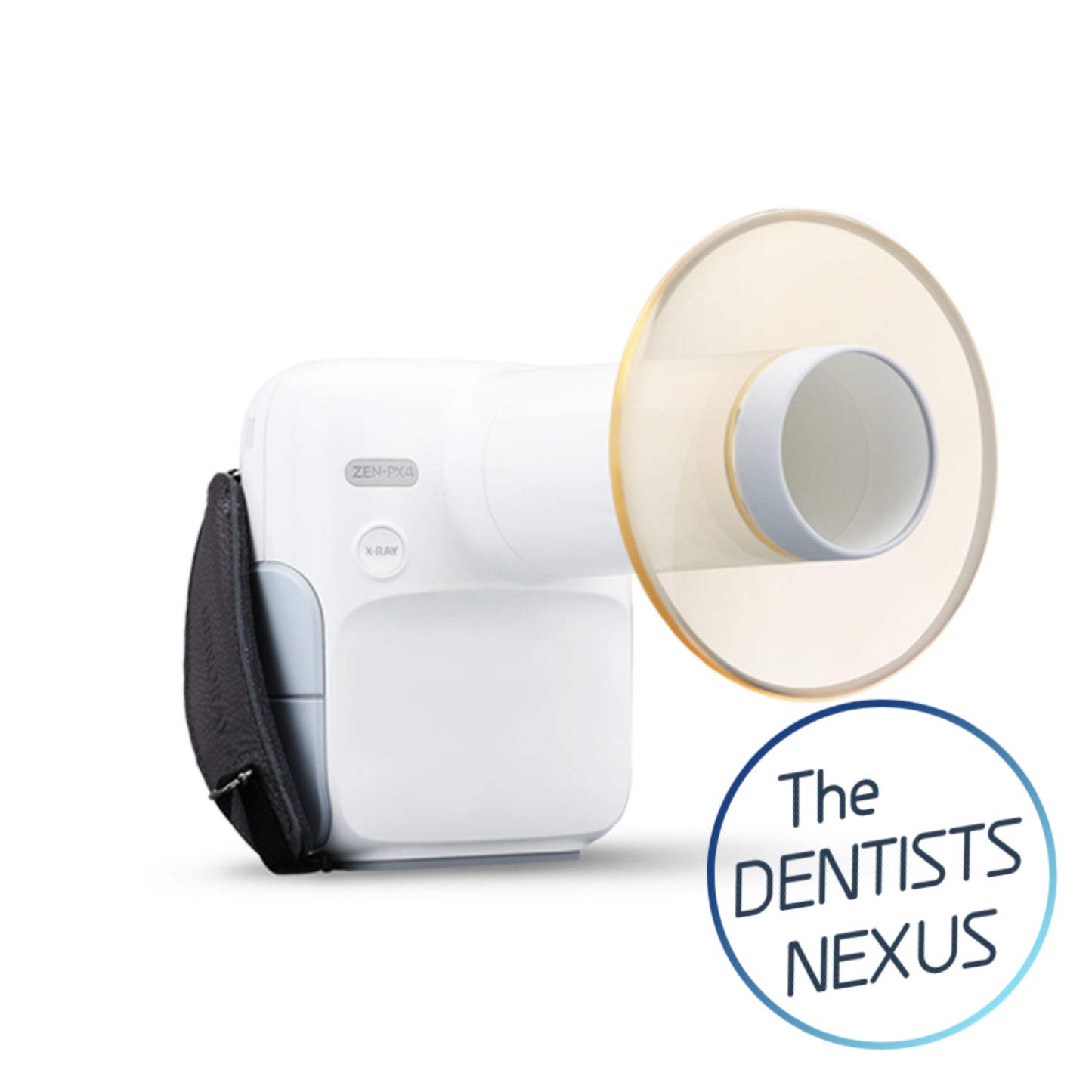

Genoray | ZEN-PX4 Portable X-ray

The ZEN-PX4 (also Port-X IV) from Genoray is fast becoming dentists' go-to portable x-ray generator due to its super lightweight design & convenient Wi-Fi connectivity for the high tech clinics today. The ZEN-PX4 follows the huge success of its predecessor, ZEN-PX2, by providing the same world-renowned dependability while reducing 30% in weight with its new, sleek chassis.

Plug your Genoray GIX-1 sensor directly into the ZEN-PX4 for immediate shot previews on its LCD screen, and wirelessly send it to the PortView imaging software on your PC using its Wi-Fi adapter.

• Super lightweight - 3.3lbs.

• 0.4mm focal spot

• Long battery life - 400 exposures per single charge
• 2 Yr Manufacturer Warranty

Mechanical Specifications

• Tube Voltage: 70kV
• Tube Current: 2mA
• Anode Angle: 12.5 degrees
• Heat Capacity: 4.3kJ
• Max Anode Thermal Efficiency: 100W

• Exposure Time: 0.05s - 1.6s

Dimensional Specifications

• Main Body Size: 140 x 254 x 173mm (WxDxH)

• Weight: 3.3lbs.

Power Specifications

• Rechargeable Battery: Li-Polymer DC 22.2V 1,000mAh/25C
• Adapter Rating: 100-240V, 50/60Hz, 1.0A
• Output Voltage: 28VDC
• Output Current: 1.42A

*Please ensure compliance with your local regulations, as requirements may vary by state or region. State mandated EPE or other services may incur additional charges.
