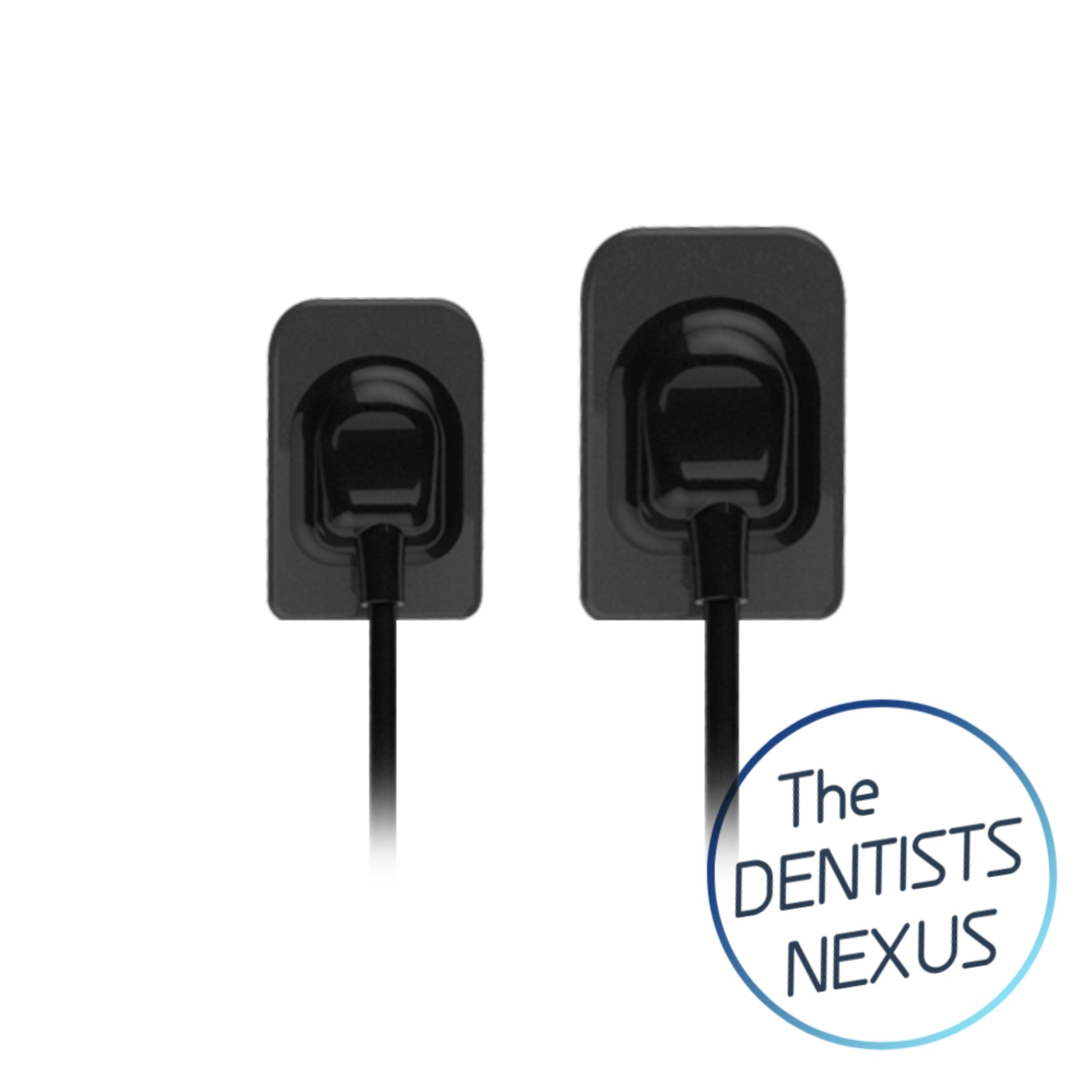

iRay Pluto Sensor

Finally, an affordable solution for the saturated US market of overpriced intraoral sensors! iRay is China's leading manufacturer of x-ray system components since its founding in 2011, currently distributed in over 80 countries.

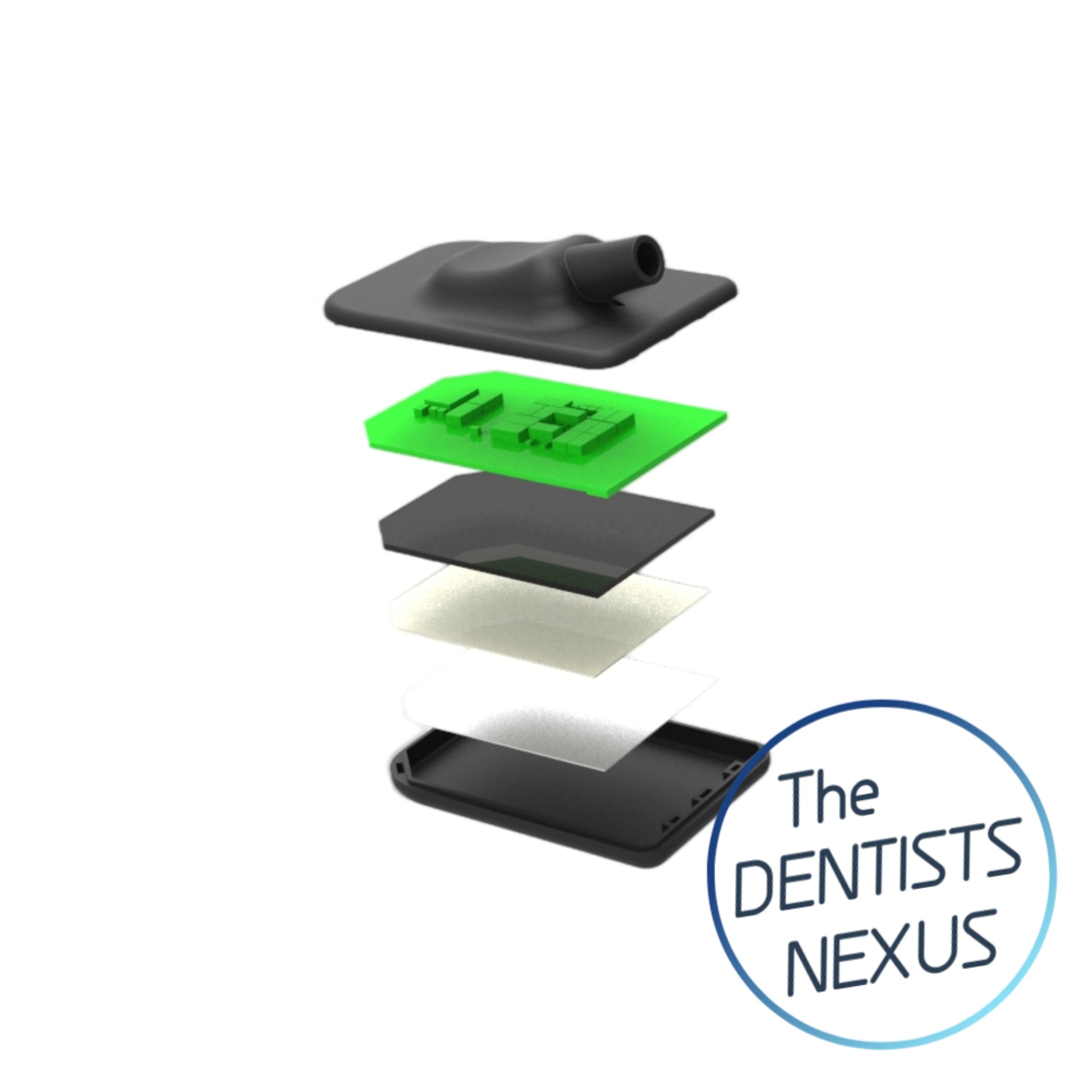

The Pluto Sensor uses CMOS detectors with a directly deposited Csl:TI scintillator achieving 20μm of pixel pitch, an IP68 protection via Kevlar housing materials, 3m long cable, and direct/TWAIN integration with nearly all major imaging software.

2 Year manufacturer warranty included

Size 1.0

• Dimensions (mm³): 25 x 38.5 x 4.5
• Active Area (mm²): 20 x 30
• Pixel Matrix (1.5 M): 1,000 x 1,500

Size 1.5

• Dimensions (mm³): 29.2 x 42.5 x 4.5
• Active Area (mm²): 24 x 33
• Pixel Matrix (1.98 M): 1,200 x 1,650

Size 2.0

• Dimensions (mm³): 31 x 45 x 4.5
• Active Area (mm²): 26 x 36
• Pixel Matrix (2.34 M): 1,300 x 1,800
