Remedi | REMEX-T100 Portable X-ray

REMEX-T100 by Remedi/Phoenix Imaging - is one of only 11 handheld x-ray models approved for use in the state of New Jersey

• Ergonomic camera grip design
• Lightweight - 4.7lbs
• Works with digital sensors, film, phosphor plates
• 0.4mm focal spot produces optimal, high-resolution images
• Low patient dosage
• Internal shielding to protect operator
• Long battery life - 400 exposures per single charge
• 2 Yr Manufacturer Warranty

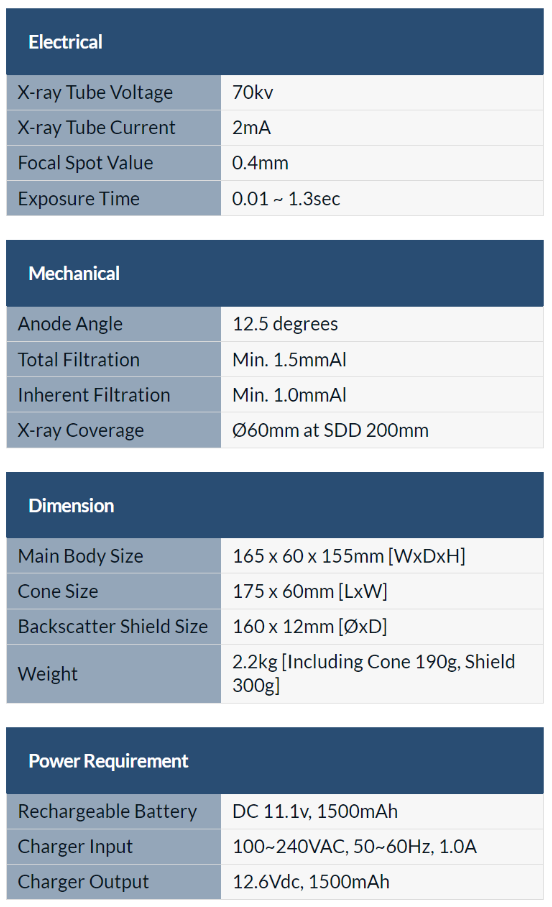

Mechanical Specifications

• Anode Angle: 12.5 degrees
• Total Filtration: Min. 1.5mm
• Inherent Filtration: Min. 1.0mm
• X-ray Coverage: Ø60mm at SDD 200mm

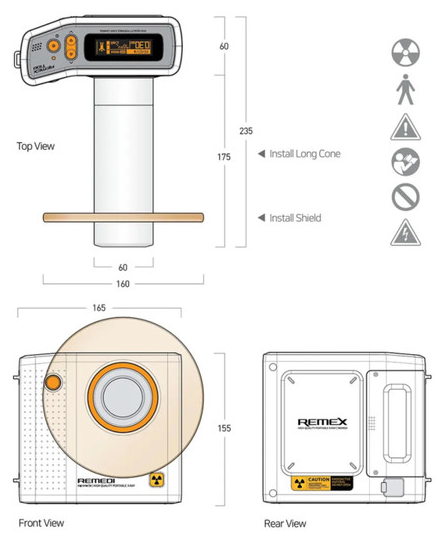

Dimensional Specifications

• Main Body Size: 165 x 60 x 155mm (WxDxH)
• Cone Size: 175 x 60mm (LxW)
• Backscatter Shield Size: 160 x 120mm (ØxD)
• Weight: 4.7 lbs Including Cone & Shield

Power Requirement Specifications

• Rechargeable Battery: DC 11.1v, 1500mAh
• Charger Input: 100~240VAC, 50~60Hz, 1.0A
• Charger Output: 12.6Vdc, 1500mAh

*Please ensure compliance with your local regulations, as requirements may vary by state or region. State mandated EPE or other services may incur additional charges.
